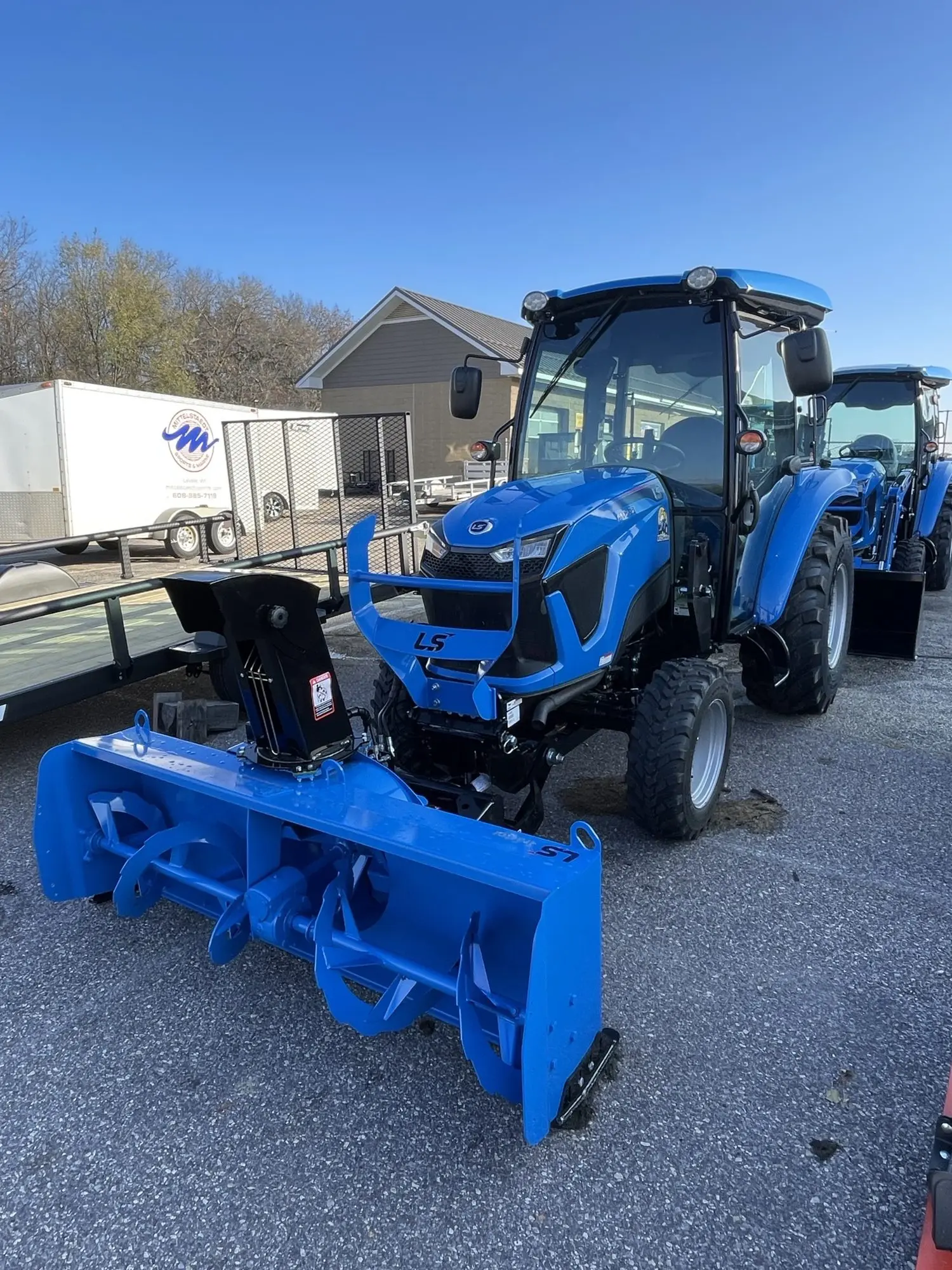

LS Compact Tractor Front Mount Snowblower
608-707-1669
Advertised Price $CALL FOR PRICE
Special Sale Price
Financing Options

SNOWBLOWERS

When the winter work piles up, one of these quick-attach, high-performance snowblowers with hydraulic chute rotation is just the thing to make it all go away.

MakeLS
ModelFront Mount Snowblower

Specifications

**LW3168 & LW3168 A**
– **Overall Width (with side extensions):** 68 inches
– **Cutting Width:** 68 inches
– **Cutting Height:** 23 inches
– **Impeller Drive:** Gear Box
– **Auger Drive:** Worm Gear
– **Auger Diameter:** 13 3/4 inches
– **Impeller Diameter:** 17 5/8 inches
– **Number of Blades on Impeller:** 4
– **Chute Rotation:** Hydraulic
– **Adjustable Heavy Skid Shoes:** Yes (3 positions: 0”, 1/2”, 1”)
– **Auger Shear Bolt Protection:** Yes
– **Impeller Shear Bolt Protection:** Yes
– **Approx. Shipping Weight:** 500 lbs
– **Compatible With:** MT335H

—

**LW3174**
– **Overall Width:** 74 inches
– **Cutting Width:** 74 inches
– **Cutting Height:** 26 inches
– **Impeller Drive:** Gear Box
– **Auger Drive:** #60 Chain
– **Auger Diameter:** 14 3/4 inches
– **Impeller Diameter:** 23 3/4 inches
– **Number of Blades on Impeller:** 4
– **Chute Rotation:** Hydraulic
– **Adjustable Heavy Skid Shoes:** Yes (3 positions: 0”, 1/2”, 1”)
– **Auger Shear Bolt Protection:** Yes
– **Impeller Shear Bolt Protection:** Yes
– **Approx. Shipping Weight:** 874 lbs

—

**LW4164**
– **Working Width:** 64 inches
– **Working Height:** 26 inches
– **Auger:** Single
– **Auger Diameter:** 15 inches
– **Impeller Diameter:** 24 inches
– **Number of Impeller Blades:** 4
– **Skid Shoe:** Adjustable
– **Hitch Category:** Cat. 1
– **HP Requirements (Min-Max):** 20-50 HP
– **Tractor RPM:** 540
– **Approximate Shipping Weight:** 533 lbs

—

**LS3150**
– **Overall Width:** 50 inches
– **Cutting Width:** 49 3/4 inches
– **Cutting Height:** 20 inches
– **Impeller Drive:** Chain #40
– **Auger Drive:** Worm Gear
– **Auger Diameter:** 12 3/4 inches
– **Impeller Diameter:** 15 3/4 inches
– **Number of Blades on Impeller:** 3
– **Chute Rotation:** Manual (Hydraulic Optional)
– **Adjustable Heavy Skid Shoes:** Yes
– **Auger Shear Bolt Protection:** Yes
– **Impeller Shear Bolt Protection:** Yes
– **Approx. Shipping Weight:** 350 lbs

Options

Product Family UM Series
Product UM-72
Description 72″ Medium Duty Gear Drive Tiller
Rotation Forward
RPM 540
HP Required 25 – 50
Working Width 73″
Max Working Depth 7″
# of Flanges on Rotor 9
# of Tines per Flange 6
Total # of Tines 54
Rotor Thickness or Diameter 3″
Rotor Swing Diameter 17″
Overall Width 78″
Weight (lbs) 684 lbs
Hitch Cat 1
